Panoptix LVS32-TH Transducer Requires GLS10

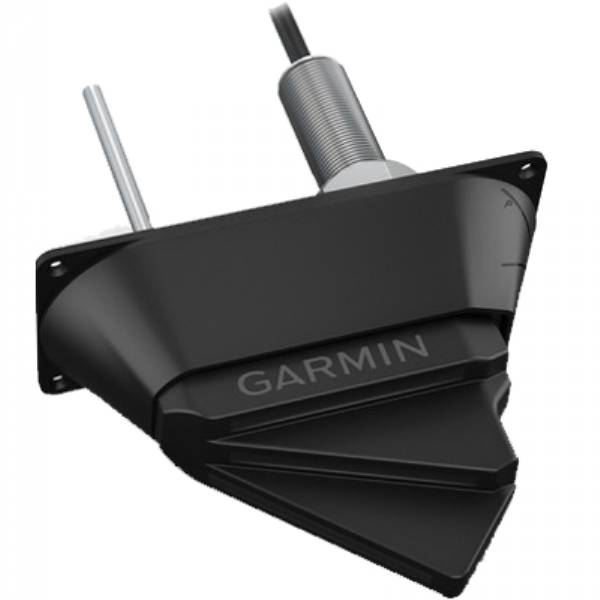

Garmin PanoptixTM LVS32-TH Transducer Thru-hull Mount

Model: 010-12928-01

This transducer is part of the Pantopix LiveScope system and requires the GLS 10 sonar black box to function. This thru-hull version transducer features LiveScope Forward to see detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming up to 200 feet around your boat in real-time, even when your boat is stationary. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.

Specifications

TRANSDUCER FREQUENCY	530 - 1,100 kHz
TRANSDUCER POWER	500w
TRANSDUCER BEAMWIDTH	20 deg x 135 deg
TRANSDUCER MAXIMUM DEPTH	Forward: 200 feet (61.0 m)
TRANSDUCER CABLE LENGTH	20 ft.
TRANSDUCER DEPTH/SPEED/TEMPERATURE	Depth
TRANSDUCER NUMBER OF PINS	21

What's in the Box:

• Panoptix LVS32-TH transducer
• Thru-hull mounting hardware
• Mounting hardware
• Documentation
