GPSMAP 8412xsv 12in Comb Worldwide Basemap

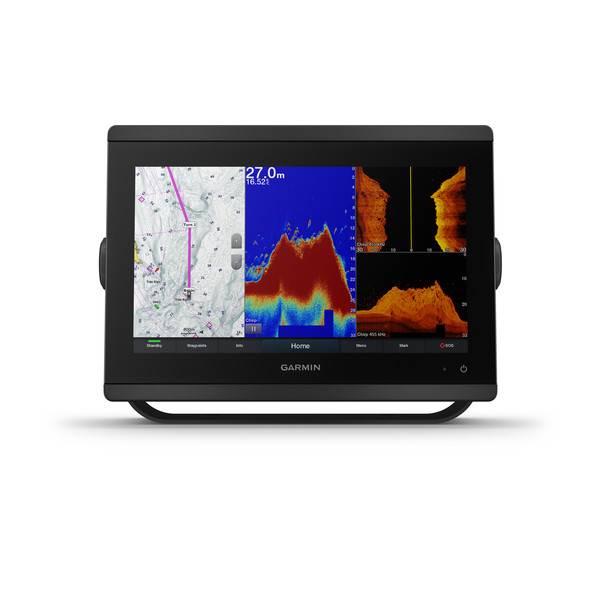

Garmin GPSMAP 8412xsv 12 in Chartplotter/Sonar Combo with Full HD In-Plane Switching (IPS) Touchscreen and Worldwide Basemap

Model: 010-02092-02

• Features a 12 in full HD in-plane switching (IPS) touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
• Preloaded worldwide basemap; add the coverage you need with optional Garmin Navionics+™, Garmin Navionics Vision+™, BlueChart® g3 or LakeVü™ g3 charts (sold separately)
• Built-in support for the full suite of Garmin sonar capabilities, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), and the Panoptix™ all-seeing sonar line (transducers sold separately)
• Install multiple displays flat mounted edge-to-edge to create a sleek glass helm look, or mounted flush; bail mount included
• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system - from sonar, radar and autopilots to instruments, cameras and multimedia
• For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices
• SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
• Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
• Includes Bluetooth® connectivity, ANT® technology and built-in Wi-Fi® networking for pairing with the free ActiveCaptain® app
• Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and mapping cards

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP® 8412xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 12 in full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

The GPSMAP 8412xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

NMEA 2000® networking and the Garmin Marine Network allow you to easily build your full marine electronics suite - from radar and autopilots to cameras, instruments and forward-looking sonar - controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems such as digital switching, lighting and stabilization conveniently to your chartplotter screen.

The GPSMAP 8412xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi® technology lets you pair with the free ActiveCaptain® app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more. Built-in ANT® wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode™ station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

The Garmin SailAssist™ feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and a tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

Download the ActiveCaptain® app to your smartphone or tablet to manage your marine experience from anywhere - from trip planning and prefishing to updating software and purchasing maps.

Specifications

General
Dimensions	11.9 in x 8.5 in x 3 in (30.3 cm x 21.6 cm x 7.6 cm)
Weight	6.2 lbs (2.8 kg)
Water rating	IPX7
Display type	FHD, IPS touchscreen
Display size	10.1 in x 5.7 in; 11.6 in diagonal (25.7 cm x 14.5 cm; 29.5 cm diagonal)
Display resolution	1920 x 1080 pixels
Mounting options	Bail, flat or flush (Garmin does not offer hardware or accessories for a flat-mount installation; professional tools and knowledge are required)
Maps and Memory
Accepts data cards	2 microSD cards
Waypoints	5,000
Tracks	50 saved tracks; 50,000 track points
Routes	100
Built-in maps	Worldwide basemap, Auto Guidance, tide tables
Optional map support	BlueChart® g3, BlueChart g3 Vision, LakeVü™ g3, LakeVü g3 Ultra, Garmin Navionics+, Garmin Navionics Vision+, TOPO 100K, standard mapping, Garmin Quickdraw Contours, raster chart support
Sensors
Satellite systems	GPS, GLONASS, Galileo; built-in 10 Hz receiver; WAAS supported
Interfaces	NMEA 2000 and NMEA 0183 compatible
Electrical
Power input	10 to 32 Vdc
Typical current draw at 12 Vdc	1.3 A
Maximum current draw at 12 Vdc	6.0 A
Maximum power usage at 10 Vdc	45 W
Sonar
Power output	1 kW
Traditional sonar	Built-in dual channel CHIRP, 70/83/200 kHz (L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix / LiveScope	Supported (transducers sold separately)
Networking and Connections
NMEA 2000 ports	1
NMEA 0183 ports	1 input (Rx), 1 output (Tx)
Video input ports	1 BNC composite; 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network ports	2
Wireless	Bluetooth pairing, ANT, Garmin Wi-Fi network (local connection)

What's in the Box:

• GPSMAP 8412xsv
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Bail mount with knobs
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation
