GARMIN
010-10703-20 50/200KHZ B258 Depth/Temp 8-Pin
- Manufacturer part #
- 010-10703-20
- UPC
- 753759971892
- Condition
- New
$1,012.95
In stock
Estimated to ship by Tuesday, October 20.
Free ground shipping (48 states)

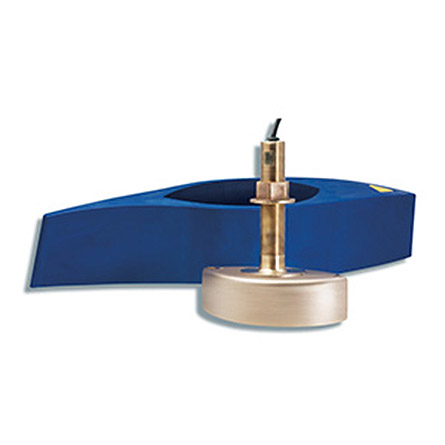

Airmar's B258 8-pin bronze, thru-hull mount transducer with fairing provides depth and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-25 deg deadrise angle.
Specifications
• Thru-Hull, Bronze Housing.
Fairing included
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Elliptical beam covers more bottom area thus
increasing your catch
• For use with sportfishing and commercial
fishingboats 11 m (35') and up with fiberglass
and wood hulls. For use with GSD22 and
GPSMAP 5x5s units.
• Economical 1 KW solution
• Deadrise angles up to 25º
• Beam Width: 50 kHz—15° x 21°
200 kHz—3° x 5°
• Depth Range: 50 kHz—457m to 671m
(1500’ to 2200’) 200kHz—213m to 305m
(700’ to 1000’)
Fairing included
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Elliptical beam covers more bottom area thus
increasing your catch
• For use with sportfishing and commercial
fishingboats 11 m (35') and up with fiberglass
and wood hulls. For use with GSD22 and
GPSMAP 5x5s units.
• Economical 1 KW solution
• Deadrise angles up to 25º
• Beam Width: 50 kHz—15° x 21°
200 kHz—3° x 5°
• Depth Range: 50 kHz—457m to 671m
(1500’ to 2200’) 200kHz—213m to 305m
(700’ to 1000’)
Shipping weight: 15 lb · Package dimensions: 26 × 19 × 7 in
