ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland

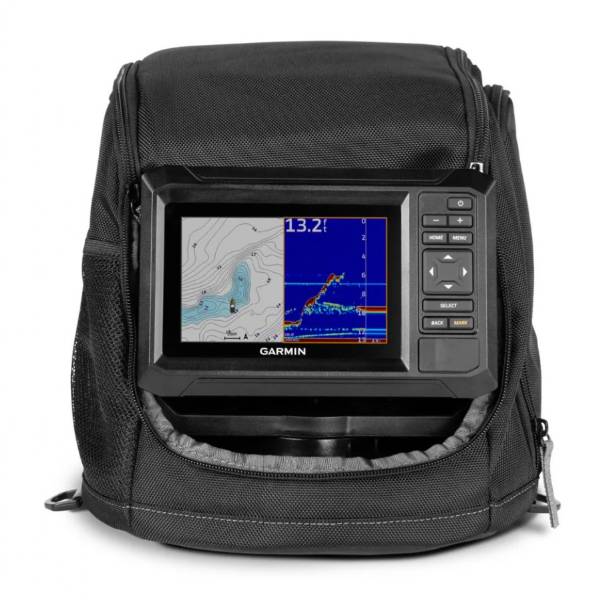

Garmin ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland
Model: 010-02590-35

• BRIGHT 5" SUNLIGHT-READABLE DISPLAY
• INCLUDED DUAL BEAM-IF TRANSDUCER
• BUILT-IN FLASHER
• GARMIN NAVIONICS+™ MAPS WITH 23,000+ LAKES
• RUGGED, PORTABLE CARRYING CASE

Designed for the passionate angler, the 5-inch ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.

This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.

This bundle includes a high wide dual beam-IF ice fishing transducer with selectable beamwidth (either 15 or 45 degrees) and provides crisp, clear fish arches with excellent target separation.

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

The 5-inch ECHOMAP UHD2 also supports ClearVü™ scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications

General
Dimensions	7.4 in x 4.8 in x 2.4 in (18.8 x 12.2 x 6.2 cm)
Weight	9.5 lbs (4.3 kg)
Water rating	IPX7
Display type	WVGA, IPS
Display size	4.3 in x 2.6 in (10.9 x 6.6 cm)
Display resolution	800 x 480 pixels
Input	Keyed
Maps and Memory
Accepts data cards	1 microSD™ card; 32 GB maximum size
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation routes	100
Ice Fishing Details
Battery type, size	SLA, 7Ah
Bag size	S
Included transducer	DB-IF
Transducer holding feature	Foam float
Sensors
GPS	Yes
GLONASS	Yes
Galileo	Yes
Has built-in receiver	Yes
Receiver	5 Hz
NMEA 2000 compatible	Yes
Supports WAAS	Yes
Built-in Maps
Built-in Auto Guidance+	Yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	Yes
Garmin Navionics+ (Inland)	Yes
Optional Map Support
Garmin Navionics+™	Yes
Garmin Navionics Vision+™	Yes
TOPO 100K	Yes
Standard Mapping	Yes
Garmin Quickdraw Contours	Yes
Chartplotter Features
ActiveCaptain® compatible	Yes
Electrical Features
Power input	9 to 18 Vdc
Sonar Features
Displays sonar	Yes
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
Networking and Connections
4-pin transducer ports	1
Garmin Wi-Fi network (local connection)	Yes

What's in the Box:

• ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
• Dual Beam-IF transducer
• Tilt/swivel mount
• Portable bag
• Base/handle
• Foam float
• Power cable
• Rechargeable battery
• Battery charger
• Documentation
