GARMIN

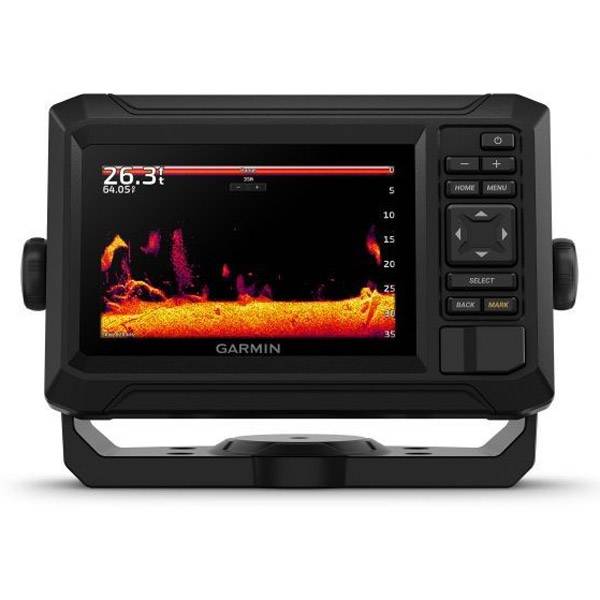

ECHOMAP UHD2 53cv U.S. Inland GN+ with GT20-TM Transducer
- Manufacturer part #
- 010-02590-51
- UPC
- 753759307035
- Condition
- New
$449.99
In stock
Estimated to ship by Monday, October 19.
Free 2-day shipping (48 states)
Garmin ECHOMAP UHD2 53cv U.S. Inland GN+ with GT20-TM Transducer
Model: 010-02590-51
What's in the Box:
Model: 010-02590-51
- Easy-to-use keyed 5 in chartplotter with a bright, sunlight-readable screen
- Included GT20-TM transducer for Garmin traditional and ClearVü™ scanning sonars
- Preloaded Garmin Navionics+™ mapping with U.S. inland content covering thousands of lakes with up to 1' contours
Fish like a local with the 5 in or 7 in ECHOMAP™ UHD2 chartplotters. See clear, sharp fish arches with Garmin traditional sonar. Use ClearVü™ scanning sonar featuring vivid color palettes for clear, high-contrast views below your boat. Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+™ mapping with coastal or inland content. Use built-in Wi-Fi® (Wi-Fi is a registered trademark of the Wi-Fi Alliance) connectivity to share sonar, waypoints and routes with another compatible Garmin chartplotter (sold separately). You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more.
Specifications| General | |
| Dimensions | 7.4 in x 4.8 in x 2.4 in (18.8 x 12.2 x 6.2 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display type | WVGA, IPS |
| Display size | 4.3 in x 2.6 in (10.9 x 6.6 cm) |
| Display resolution | 800 x 480 pixels |
| Mounting options | Bail or flush |
| Input | Yes |
| Maps and Memory | |
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation routes | 100 |
| Sensors | |
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
| Built-in Maps | |
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ (inland and coastal) | Yes |
| Garmin Navionics+ (coastal) | Yes |
| Garmin Navionics+ (inland) | Yes |
| Tide tables | Yes |
| Optional Map Support | |
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| ActiveCaptain® compatible | Yes |
| Electrical Features | |
| Power input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1.0 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
| Sonar Features | |
| Displays sonar | Yes |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| Networking and Connections | |
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
What's in the Box:
- ECHOMAP™ UHD2 53cv chartplotter
- GT20-TM transducer
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Specifications
General
DIMENSION 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
INPUT
DISPLAY SIZE 4.3" x 2.6" (10.9 x 6.6 cm)
DISPLAY RESOLUTION 800 x 480 pixels
DISPLAY TYPE WVGA, IPS
WEIGHT 1.1 lbs (0.5 kg)
WATERPROOF IPX7
MOUNTING OPTIONS Bail or flush
Maps & Memory
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Sensors
HAS BUILT-IN RECEIVER
RECEIVER 5 Hz
GPS
SUPPORTS WAAS
Built-in Maps
GARMIN NAVIONICS+ (COASTAL) yes (see Additional)
GARMIN NAVIONICS+ (INLAND) yes (see Additional)
TIDE TABLES yes (see Additional)
Optional Map Support
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
Chartplotter Features
ACTIVECAPTAIN® COMPATIBLE
Sonar Features & Specifications
DISPLAYS SONAR
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz
Connections
4-PIN TRANSDUCER PORTS 1
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.0 A
MAXIMUM CURRENT DRAW AT 12 VDC 1.5 A
MAXIMUM POWER USAGE AT 10 VDC 18W
Additional
Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
Garmin Navionics+ (inland): 53cv U.S. lakes
Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
DIMENSION 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
INPUT
DISPLAY SIZE 4.3" x 2.6" (10.9 x 6.6 cm)
DISPLAY RESOLUTION 800 x 480 pixels
DISPLAY TYPE WVGA, IPS
WEIGHT 1.1 lbs (0.5 kg)
WATERPROOF IPX7
MOUNTING OPTIONS Bail or flush
Maps & Memory
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Sensors
HAS BUILT-IN RECEIVER
RECEIVER 5 Hz
GPS
SUPPORTS WAAS
Built-in Maps
GARMIN NAVIONICS+ (COASTAL) yes (see Additional)
GARMIN NAVIONICS+ (INLAND) yes (see Additional)
TIDE TABLES yes (see Additional)
Optional Map Support
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
Chartplotter Features
ACTIVECAPTAIN® COMPATIBLE
Sonar Features & Specifications
DISPLAYS SONAR
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz
Connections
4-PIN TRANSDUCER PORTS 1
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.0 A
MAXIMUM CURRENT DRAW AT 12 VDC 1.5 A
MAXIMUM POWER USAGE AT 10 VDC 18W
Additional
Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
Garmin Navionics+ (inland): 53cv U.S. lakes
Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
Package contents
- ECHOMAP UHD2 5" chartplotter
- GT20-TM transducer where noted
- power/data cable
- tilt mount
- flush mount
- hardware
- documentation
Shipping weight: 3.9 lb
