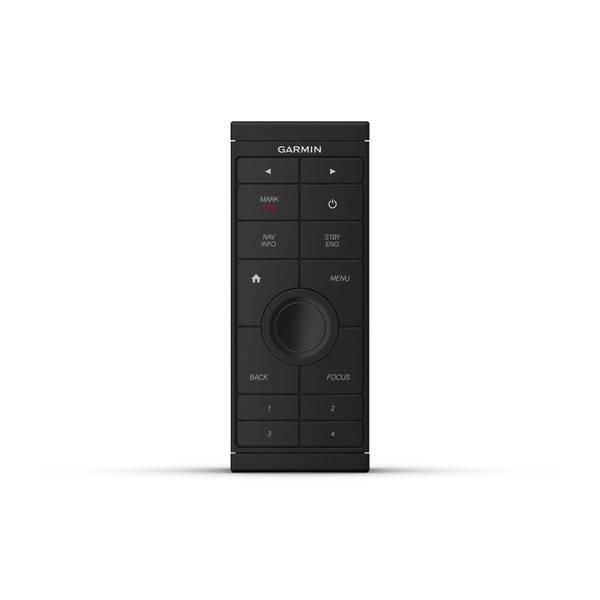

GRID 20 Vertical Controller

GARMIN GRID 20 VERTICAL

Model: 0100201100

• Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
• 360-degree, all-in-one joystick with a rotary knob and push-to-select button
• Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
• Four favourite keys can be designated to restore your system to a previously saved configuration
• Allows wired or wireless installation options

You don't have to stand for hours at the helm. The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate four favourite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there's also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays - or even into the arm of the captain's chair.

Specifications

Weight	179 g
Temperature range	From -15 deg to 70 degC
Material	Fully gasketed, high-impact plastic
Water rating	IPX7
Compass-safe distance	114 Mm
Power input	NMEA 2000
Wired power (with included power cable)
Input power	9-32 V DC
Fuse	1.0 Amp, Fast Blow
Maximum power usage at 9 V DC	1.5 W
Typical current draw at 12 V DC	40 mA
Maximum current draw at 12 V DC	120 mA
Dimensions	14.1 x 5.6 x 6.8 cm

What's in the Box:

• GRID 20
• Mounting hardware
• Power cable
• Documentation
