GPSMAP 9010xsv 10in MFD Worldwide Basemap and Sonar

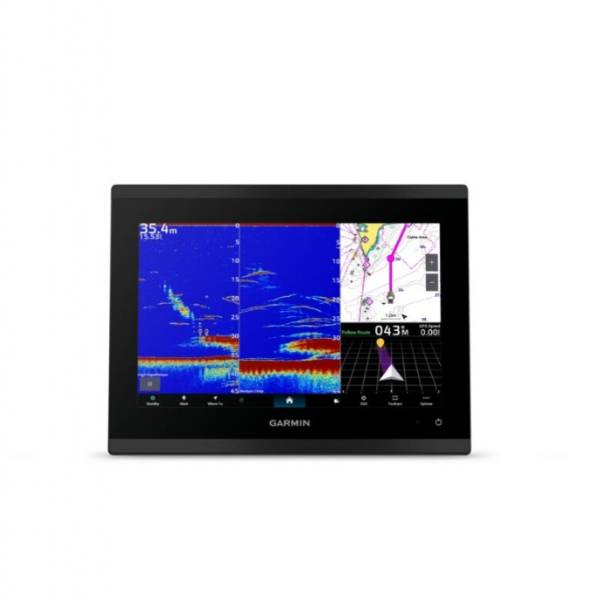

Garmin GPSMAP® 9010xsv 10 in MFD with Worldwide Basemap and Sonar
Model: 010-03175-02

• 10 in model features full HD display
• Glass helm with edge-to-edge design for seamless and modern look
• Processing power is up to 7 times faster than previous generations for superior performance, plus get faster wireless ActiveCaptain® app transfer speeds with 5GHz Wi-Fi® connectivity
• Get our most advanced built-in sonar using xCHIRP and Garmin RapidReturn™, and see fish in stunning UHD
• Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features
• Build extensive networks with reliable connectivity and gigabit speeds on the Garmin BlueNet™ network
• Enjoy high-quality entertainment with video integration capabilities with HDCP distribution
• Uses the NMEA 2000® and NMEA 0183® networks to connect to your compatible autopilots, sensors and more; compatible with existing marine ecosystems
• Take command of monitoring, control and automation systems with support for the EmpirBus™ system and other third-party solutions via OneHelm™ integrated digital switching
• Keep tabs on engine performance with extensive engine integration, including J1939 connectivity and a wide range of support for outboard engine manufacturers
• Support for Garmin Navionics+™ charts with Auto Guidance+™ technology (for planning purposes only and does not replace safe navigation operations) and Garmin Navionics Vision+™ charts with premium features such as high-resolution relief shading
• Connect your compatible Garmin devices and more with integrated Bluetooth® and ANT® technologies; use spoken commands to control the chartplotter with your compatible headset or Garmin smartwatch
• Built for harsh marine conditions with an IPX7 water-resistance rating

GPSMAP® 9010xsv is the integrated touchscreen chartplotter designed for captains who demand the best. Cruisers and anglers can enjoy edge-to-edge clarity with a high-resolution display on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that's up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Our best sonar ever helps you spend less time fishing and more time catching. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allow you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with support for Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ includes a 1-year subscription for daily chart updates and support for Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).

Specifications

General
Dimensions	10.24 in x 7.87 in x 3.54 in (26.0 cm x 20 cm x 9.1 cm)
Weight	5.55 lbs (2.52 kg)
Water rating	IPX7
Display type	WUXGA, IPS; edge-lit backlight; touchscreen
Display size	8.54 in x 5.34 in; 10.1 in diagonal (21.7 cm x 13.6 cm; 25.6 cm diagonal)
Display resolution	1920 x 1200 pixels
Mounting options	Bail, flat or flush
Polarized lens viewability	Yes
Maps and Memory
Accepts data cards	2 microSD™ cards (on rear of product)
Supports USB card reader	Yes
Waypoints	5,000
Tracks	50 saved tracks; 50,000 track points
Routes	100
Optional map support	BlueChart® g3, BlueChart g3 Vision, LakeVü™ g3, LakeVü g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, standard mapping, Garmin Quickdraw Contours, raster chart support
Sensors
Satellite systems	GPS, GLONASS, Galileo, BeiDou
Built-in receiver	Yes, 10 Hz
Supports WAAS	Yes
Multi-band, multi-constellation GPS	Yes
NMEA 2000 compatible	Yes
NMEA 0183 compatible	Yes
Chartplotter Features
SmartMode compatible	Yes
AIS	Yes
DSC	Yes
Fusion-Link™ compatible radios	Yes
GCV black box sonar support	Yes
ActiveCaptain® compatible	Yes
Supports voice commands	Yes
Spoken audio alerts	Yes
GRID compatible	Yes
GRID 20 compatible	Yes
Wireless remote compatible	Yes
Sailing features	Yes
OneHelm support	Yes
Electrical
Power input	10 to 32 Vdc
Typical current draw at 12 Vdc	3.6 A
Maximum current draw at 12 Vdc	4.14 A
Maximum power usage at 10 Vdc	45 W
Sonar
Displays sonar	Yes
Power output	1 kW
Traditional sonar (dual frequency/beam)	Yes (dual 1 kW)
Built-in xCHIRP	Yes
Built-in RapidReturn	Yes (up to 2x)
ClearVü	Yes
SideVü	Yes
Panoptix™ sonar	Yes
Networking and Connections
NMEA 2000 ports	1
NMEA 0183 ports	1 input (Rx), 1 output (Tx)
Video input ports	1 BNC composite; 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin BlueNet™ network ports	2
USB ports	1 (USB-C)
Bluetooth® pairing	Yes
ANT® connectivity	Yes

What's in the Box:

• GPSMAP chartplotter
• Power cable
• Backbone/drop cable (2 meters) and T-connector for NMEA 2000 network
• Bail mount with knobs
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation
