GARMIN
GT360UHD Transducer for Spy Pole
- Manufacturer part #
- 010-03012-10
- UPC
- 753759345679
- Condition
- New
$999.99
In stock
Estimated to ship by Monday, October 19.
Free 2-day shipping (48 states)

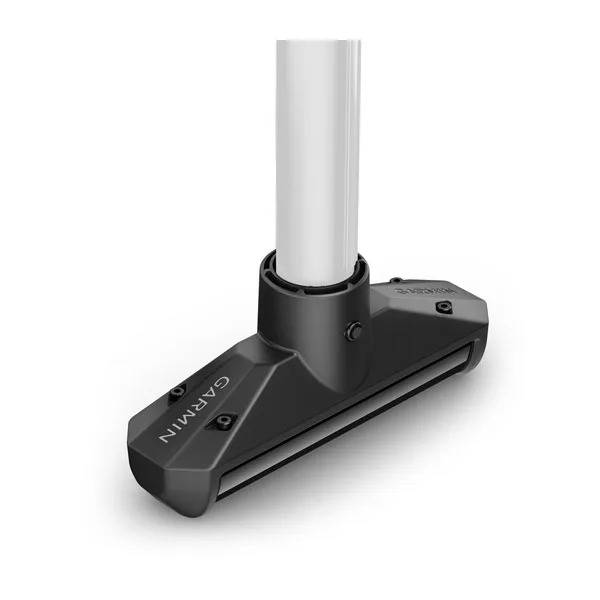

Garmin GT360UHD Transducer for Spy Pole
Model: 010-03012-10- CAPTURE CRISP, CLEAR 360-DEGREE IMAGERY
- SEE A BIRD'S-EYE VIEW OF WHAT’S BENEATH THE SURFACE
- PAIR WITH YOUR COMPATIBLE GARMIN CHARTPLOTTER
- GET A LIVE WINDOW INTO 3D IMAGERY WITH LIVESCOPE™ SONAR
- TRUE MOTION TECHNOLOGY INTEGRATES WITH GPS TO KEEP SCANS TRUE TO LOCATION
See the underwater world like never before with the GT360UHD transducer. Mount it on Spy™ pole (sold separately) to capture OneVü™ sonar, 360 degrees of bird’s-eye imagery around your boat in 2D and 3D views — then fish that area without having to constantly rescan. GT360UHD seamlessly integrates with GPS through True Motion technology, so your sonar scans stay true to location as your boat moves through the water. Combine with your LiveScope™ transducer to overlay your live sonar onto the detailed imagery for an all-new 3D view.
Specifications| Transducer frequency | OenVu/SideVu: 455 kHz, 800 kHz, 1070 kHz |
| Transducer power | 500 W |
| Transducer beamwidth | Oneu/SideVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| Transducer maximum depth | 500 ft range |
| Transducer cable length | 20.3 ft (6.2 m) |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 12 |
| Dimensions (with mount; LxWxH) | 216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8") |
| Transducer frequency | 455 kHz, 800 kHz, 1070 kHz |
What's in the Box:
- GT360UHD 12-pin transducer
- GT360UHD transducer mount for Spy™ Pole
- LiveScope™ adjustable perspective shaft mount
- Dogbone stabilizer
- Mounting hardware
- Documentation
Specifications
General
Transducer frequency - OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
Transducer power - 500 W
Transducer beamwidth - OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth - OneVü/SideVü: 500 ft range
Transducer cable length - 20.3 ft (6.2 m)
Transducer depth/speed/temperature - Depth and Temperature
Transducer number of pins - 12
OneVü Source - yes
Dimensions (with mount; LxWxH) - 216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8")
Transducer Support
Transducer frequency - OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
Transducer frequency - OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
Transducer power - 500 W
Transducer beamwidth - OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth - OneVü/SideVü: 500 ft range
Transducer cable length - 20.3 ft (6.2 m)
Transducer depth/speed/temperature - Depth and Temperature
Transducer number of pins - 12
OneVü Source - yes
Dimensions (with mount; LxWxH) - 216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8")
Transducer Support
Transducer frequency - OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
Package contents
GT360UHD 12-pin transducer
GT360UHD transducer mount for Spy Pole
LiveScope adjustable perspective shaft mount
Dogbone stabilizer
Mounting hardware
Documentation
GT360UHD transducer mount for Spy Pole
LiveScope adjustable perspective shaft mount
Dogbone stabilizer
Mounting hardware
Documentation
Shipping weight: 4.6 lb
