GARMIN

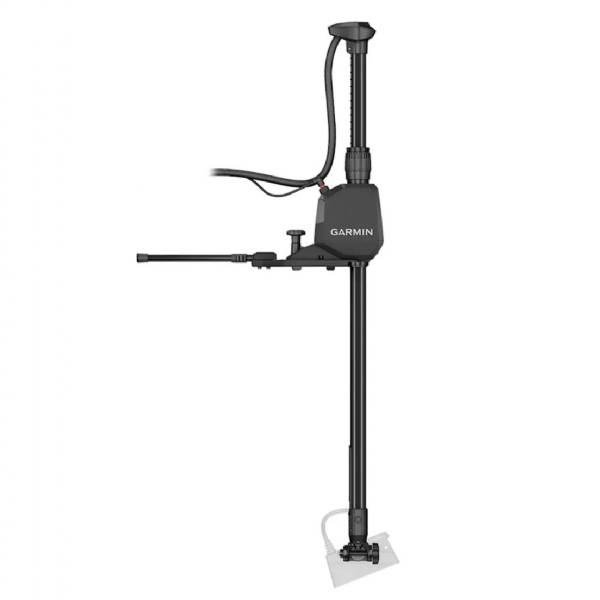

Spy Pole 42in Motorized Pole Mount
- Manufacturer part #
- 010-03012-00
- UPC
- 753759369231
- Condition
- New
$1,999.99
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Garmin Spy Pole 42in Motorized Pole Mount
Model: 010-03012-00- TRUE MOTION: With True Motion technology and your GT360UHD, scans stay true to location as your boat moves.
- SPYLOCK: Lock your LiveScope sonar on any point of interest, such as a brush pile, rock mound or waypoint.
- SPYSCAN: Automatically sweep Spy pole back and forth in any direction to simplify your search for fish and structure.
- SPYLINK: Synchronize with the speed and direction of your Force or Force Pro trolling motor, then control Spy with your Force pedal while in anchor lock.
TAKE FULL COMMAND OF YOUR UNDERWATER VIEW: Mount your transducers to Spy pole, the revolutionary motorized sonar control, to precisely and wirelessly maneuver LiveScope™ and GT360UHD transducers.
INTUITIVE POSITIONING: Keep your boat where you want it and have full control of your LiveScope sonar from a range of control modes, including SpyLock™ point locking technology, SpyScan™ search mode and SpyLink™ control mode.
MULTIPLE MOUNTING OPTIONS: Easily mount Spy pole to your Force or Force Pro trolling motor — or mount it directly to your boat’s deck and enjoy smooth dismount with a quick-release system.
CONTROL AT YOUR FINGERTIPS: Attach the included remote to your rod or use it as a handheld to maneuver Spy pole with a simple turn of the wrist or the press of a button.
FOOT CONTROL: Use the included low-profile, easy-to-use foot control to position Spy pole, keeping your hands free to fish.
CHARTPLOTTER INTEGRATION: Configure and control Spy pole with your compatible Garmin chartplotter.
ONEVU SONAR: Mount the GT360UHD transducer to see OneVu sonar with True Motion technology. Add LiveScope to unlock an additional live overlay in 3D mode.
Specifications| General | |
| For use in | freshwater, brackish water and saltwater |
| Mount style | quick-release, reversible |
| Electric steering | Yes |
| Shaft length (from shaft cap to shaft end) | 42in |
| Adjustable shaft depth | Yes |
| Water rating (components above water) | IPX7 |
| Warranty | 3-year, limited lifetime on shaft |
| Mounting location | Force, Force Pro (included); Deck and Gunnel (accessories required) |
| Deck stabilizer rod | Yes (included) |
| Dogbone stabilizer | Compatible, required with 2 or more transducers (not included) |
| Electrical Features | |
| Power Input | Wired 2 m (6.6 ft) cable |
| Power usage | 18 W typical; 70 W max |
| Fuse | 8 A |
| Transducer Support | |
| LiveScope adjustable perspective bottom mount | Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5° |
| Supported LiveScope transducers | LVS32, LVS34, LVS62 (max of one with internal cable routing) |
| OneVu scanning transducer support | Yes |
| Internal cable routing | Yes |
| Quick-release cable kit | Yes |
| Connections | |
| Compatible chartplotters | Wireless |
| Compatible Force trolling motors | Wireless |
| Control accessories | Wireless |
| Maximum connections | 5 gesture remotes 1 foot control 1 heading sensor 1 trolling motor 1 chartplotter network |
| Foot Control | |
| Dimensions | 7.8" x 5.8" x 1.8" |
| Wireless communication | Yes |
| Power supply | 2 AA batteries (not included) |
| Battery life (typical use) | 1 full season |
| Water rating | IPX7 |
| Programmable buttons | Yes (2) |
| Status indication | LED light |
| Quick-release mount | Yes |
| Gesture Remote | |
| Dimensions | 1.25" diameter x 0.5" thickness |
| Wireless communication | Yes |
| Power supply | CR2032 battery (included) |
| Battery life (typical use) | 1 full season |
| Water rating | IPX7 |
| Programmable buttons | Yes (3) |
| Status indication | LED light |
| Quick-release mounting options | 2 rod, hat, handheld with lanyard |
| Floats | Yes (with handheld only) |
| Steering | Yes (swing and twist) |
| Heading Sensor | |
| Dimensions | 3.5" x 2.0" x 1.0" |
| Wireless communication | Yes |
| Voltage | 10 V-45 V |
| Power input | Wired, 2 m (6.5 ft) cable |
| Power usage | 0.1 W typical; 1 W max |
| Fuse | 1 A |
| Water rating | IPX7 |
| Status indication | LED light |
| Input Voltage | 10 V-45 V |
What's in the Box:
- Spy pole with 42" shaft. 42" is recommended for 50" Force® or Force Pro trolling motors
- Garmin GT360UHD transducer and mount (included with bundles only)
- Mounting plate for Force Pro trolling motor (includes trolling motor kickstand)
- Gesture remote (includes four different mounting options and CR2032 lithium coin cell battery)
- Foot control (includes mount)
- Power cable
- Quick-release cable management kit
- Wireless heading sensor
- Adjustable perspective bottom mount for LiveScope transducers
- Dogbone stabilizer (included with bundles only)
- Hardware
- Documentation
Specifications
General
For use in - freshwater, brackish water and saltwater
Mount style - quick-release, reversible
Voltage - 10V - 45V
Electric steering - yes
Shaft length (from shaft cap to shaft end) - 42" or 49"
Adjustable shaft depth - yes
Water rating (components above water) - IPX7
Warranty - 3-year, limited lifetime on shaft
Mounting location - Force, Force Pro (included); Deck and Gunnel (accessories required)
Deck stabilizer rod - yes (included)
Dogbone stabilizer - compatible, required with 2 or more transducers (not included)
Electrical Features
Power Input - Wired 2 m (6.6 ft) cable
Power usage - 18 W typical; 70 W max
Fuse - 8 A
Transducer Support
LiveScope™ adjustable perspective bottom mount - Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5°
Supported LiveScope transducers - LVS32, LVS34, LVS62 (max of one with internal cable routing)
OneVü scanning transducer support - yes
Internal cable routing - yes
Quick-release cable kit - yes
Connections
Compatible chartplotters - Wireless
Compatible Force trolling motors - Wireless
Control accessories - Wireless
Maximum connections - 5 gesture remotes
1 foot control
1 heading sensor
1 trolling motor
1 chartplotter network
Foot Control
Dimensions - 7.8" x 5.8" x 1.8"
Wireless communication - yes
Power supply - 2 AA batteries (not included)
Battery life (typical use) - 1 full season
Water rating - IPX7
Programmable buttons - yes (2)
Status indication - LED light
Quick-release mount - yes
Gesture Remote
Dimensions - 1.25" diameter x 0.5“ thickness
Wireless communication - yes
Power supply - CR2032 battery (included)
Battery life (typical use) - 1 full season
Water rating - IPX7
Programmable buttons - yes (3)
Status indication - LED light
Quick-release mounting options - 2 rod, hat, handheld with lanyard
Floats - yes (with handheld only)
Steering - yes (swing and twist)
Heading Sensor
Dimensions - 3.5" x 2.0" x 1.0"
Wireless communication - yes
Voltage - 10 V-45 V
Power input - Wired, 2 m (6.5 ft) cable
Power usage - 0.1 W typical; 1 W max
Fuse - 1 A
Water rating - IPX7
Status indication - LED light
For use in - freshwater, brackish water and saltwater
Mount style - quick-release, reversible
Voltage - 10V - 45V
Electric steering - yes
Shaft length (from shaft cap to shaft end) - 42" or 49"
Adjustable shaft depth - yes
Water rating (components above water) - IPX7
Warranty - 3-year, limited lifetime on shaft
Mounting location - Force, Force Pro (included); Deck and Gunnel (accessories required)
Deck stabilizer rod - yes (included)
Dogbone stabilizer - compatible, required with 2 or more transducers (not included)
Electrical Features
Power Input - Wired 2 m (6.6 ft) cable
Power usage - 18 W typical; 70 W max
Fuse - 8 A
Transducer Support
LiveScope™ adjustable perspective bottom mount - Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5°
Supported LiveScope transducers - LVS32, LVS34, LVS62 (max of one with internal cable routing)
OneVü scanning transducer support - yes
Internal cable routing - yes
Quick-release cable kit - yes
Connections
Compatible chartplotters - Wireless
Compatible Force trolling motors - Wireless
Control accessories - Wireless
Maximum connections - 5 gesture remotes
1 foot control
1 heading sensor
1 trolling motor
1 chartplotter network
Foot Control
Dimensions - 7.8" x 5.8" x 1.8"
Wireless communication - yes
Power supply - 2 AA batteries (not included)
Battery life (typical use) - 1 full season
Water rating - IPX7
Programmable buttons - yes (2)
Status indication - LED light
Quick-release mount - yes
Gesture Remote
Dimensions - 1.25" diameter x 0.5“ thickness
Wireless communication - yes
Power supply - CR2032 battery (included)
Battery life (typical use) - 1 full season
Water rating - IPX7
Programmable buttons - yes (3)
Status indication - LED light
Quick-release mounting options - 2 rod, hat, handheld with lanyard
Floats - yes (with handheld only)
Steering - yes (swing and twist)
Heading Sensor
Dimensions - 3.5" x 2.0" x 1.0"
Wireless communication - yes
Voltage - 10 V-45 V
Power input - Wired, 2 m (6.5 ft) cable
Power usage - 0.1 W typical; 1 W max
Fuse - 1 A
Water rating - IPX7
Status indication - LED light
Package contents
Spy pole with 42" or 49" shaft, depending on version selected
(42" is recommended for 50" Force or Force Pro trolling motors)
(49" is recommended for 57" Force or Force Pro trolling motors)
Mounting plate for Force Pro trolling motor (includes trolling motor kickstand)
Gesture remote (includes four different mounting options and CR2032 lithium coin cell battery)
Foot control (includes mount)
Power cable
Quick-release cable management kit
Wireless heading sensor
Adjustable perspective bottom mount for LiveScope transducers
Hardware
Documentation
(42" is recommended for 50" Force or Force Pro trolling motors)
(49" is recommended for 57" Force or Force Pro trolling motors)
Mounting plate for Force Pro trolling motor (includes trolling motor kickstand)
Gesture remote (includes four different mounting options and CR2032 lithium coin cell battery)
Foot control (includes mount)
Power cable
Quick-release cable management kit
Wireless heading sensor
Adjustable perspective bottom mount for LiveScope transducers
Hardware
Documentation
Shipping weight: 25.8 lb
