RAYMARINE
EV100 Sailboat Wheel Pilot with P70S Control
- Manufacturer part #
- T70152
- UPC
- 723193770733
- Condition
- New
$1,781.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Raymarine EV-100 Wheel Pilot with P70S Control
Model: T70152- Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement
- Designed for cockpit installations.
- SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Wheel Pilot systems includes a P70S autopilot control head.

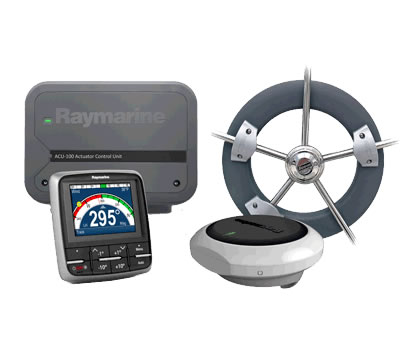

What's in the Box:
- E12093 Wheel Drive
- E70328 P70S Control
- E70098 ACU-100
- E70096 EV1 Sensor Core
- R70160 Cabling Kit
Specifications
Vessel Application Sailboats up to 8 tons
Steering Type Wheel/cable steered
Control Type Pushbuttons
Processor ACU-100: 12VDC, 7 Amps max.
Rudder Feedback Optional rudder reference
Compass EV-1 Sensor
Drive Unit Wheel-mounted drive unit
Remote Options Can also be controlled by Raymarine Network displays
Interface SeaTalk-ng (NMEA 2000)
Warranty Two Year, with extra year after on-line registration
Steering Type Wheel/cable steered
Control Type Pushbuttons
Processor ACU-100: 12VDC, 7 Amps max.
Rudder Feedback Optional rudder reference
Compass EV-1 Sensor
Drive Unit Wheel-mounted drive unit
Remote Options Can also be controlled by Raymarine Network displays
Interface SeaTalk-ng (NMEA 2000)
Warranty Two Year, with extra year after on-line registration
Package contents
Dimensions Control head: 4.3"W x 4.5"H x 1.6"D; Processor: 7.1"W x 5.5"H x 2.0"D
In the Box
EV-1 Sensor
ACU-100 Processor
p70 control head
Wheel-mounted drive unit
Installation hardware
Documentation
In the Box
EV-1 Sensor
ACU-100 Processor
p70 control head
Wheel-mounted drive unit
Installation hardware
Documentation
Shipping weight: 14.5 lb
