RAYMARINE
EV100 Tiller Pilot with P70S Control
- Manufacturer part #
- T70153
- UPC
- 723193774274
- Condition
- New
$1,781.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Raymarine EV100 Tiller Pilot
Model: T70153- Rated for tiller-steered sailboats up to 13,200 lbs (6000kg) displacement
- Designed for cockpit installations.
- Tiller drive unit can be easily removed and stored.
- SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
The EV-100 Tiller Pilot is a complete autopilot solution for tiller-steered sailboats. Designed for DIY installations, the EV-100 Tiller Pilot's externally mounted drive mounts in the cockpit, attached to the tiller. The EV-100 Tiller Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Tiller Pilot systems include a P70S autopilot control head.

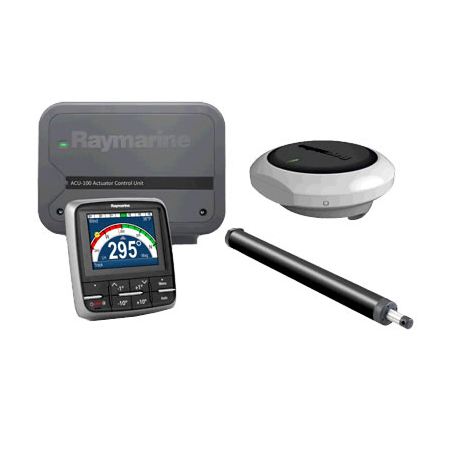

What's in the Box:
- E70096 EV1 Sensor Core
- E70098 ACU-100
- E70328 P70S Control
- Q047 Tiller Drive
- R70160 Cabling Kit
- D001 Tiller Pin (Pack of 2)
- D002 Mounting Socket (Pack of 2)
- M81181 Raypilot remote plug and socket assembly
Specifications
Vessel Application Sailboats up to 6.6 tons
Steering Type Tiller steered
Control Type Pushbuttons
Processor ACU-100: 12VDC, 7 Amps max.
Rudder Feedback Optional rudder reference
Compass EV-1 Sensor
Drive Unit Tiller actuator
Remote Options Can also be controlled by Raymarine Network displays
Interface SeaTalk-ng (NMEA 2000)
Warranty Two Year, with extra year after on-line registration
Steering Type Tiller steered
Control Type Pushbuttons
Processor ACU-100: 12VDC, 7 Amps max.
Rudder Feedback Optional rudder reference
Compass EV-1 Sensor
Drive Unit Tiller actuator
Remote Options Can also be controlled by Raymarine Network displays
Interface SeaTalk-ng (NMEA 2000)
Warranty Two Year, with extra year after on-line registration
Package contents
Dimensions Control head: 4.3"W x 4.5"H x 1.6"D; Processor: 7.1"W x 5.5"H x 2.0"D
In the Box
EV-1 Sensor
ACU-100 Processor
p70 control head
Tiller actuator
Installation hardware
Documentation
In the Box
EV-1 Sensor
ACU-100 Processor
p70 control head
Tiller actuator
Installation hardware
Documentation
Shipping weight: 12.05 lb
