RAYMARINE

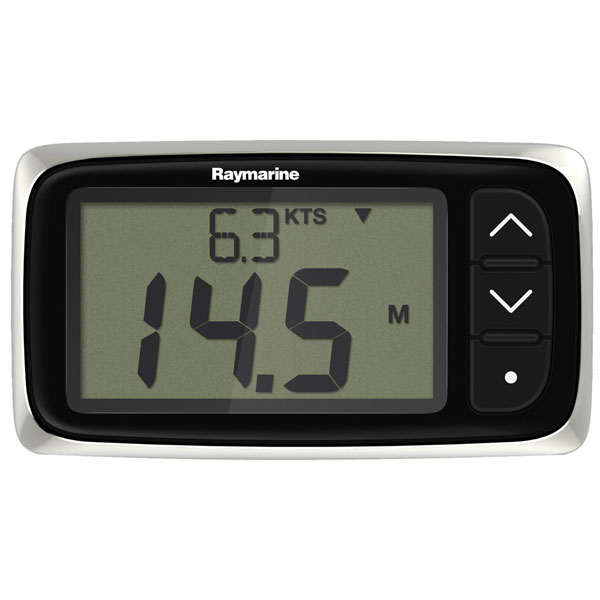

i40 Bidata System With THRU-HULL Transducer

Manufacturer part #: E70145
UPC: 723193769164
Condition: New

$383.95

In stock

Estimated to ship by Monday, October 19.

Compact Digital Displays

Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.

Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.

Key features:

Red backlighting for improved visibility
Large controls for ease of use at sea
Low power consumption for increased battery life.
SeaTalk interface (SeaTalkng when used with SeaTalk converter)
Built-in transducer interface
Same footprint as the older Raymarine ST40 instrumentation

Available Raymarine i40 Instrument Displays

i40 Depth

Crystal clear depth readout
Shallow and deep anchor alarms
Minimum depth display

i40 Speed

Shows current, maximum and average boat speed, log trip and sea temperature

i40 Bidata

Speed, depth, log and sea temperature.
Two sets of data at once in large or small digits

i40 Wind

Apparent wind speed and direction and true wind speed and direction.
Talks to your autopilot to steer your boat to a selected apparent wind angle.

Dimensions

5.04 in x 2.83 in x 1.37 in
Nominal voltage	12V DC
Operating voltage range	Current consumptions (12V supply) typical	Current consumptions (12V supply) maximum	Operating temperature	Storage temperature	Relative humidity	Water proofing	IPX6
Connections	SeaTalk, Speed transducer connections, Depth transducer connections
Conformance	Europe 2004/108/EC

Specifications

Display                 3.5" segmented LCD
Resolution             1.1" high digits on primary line, .5" digits on secondary line
Main Functions      Depth/Speed/Temp
Sensors Included   200KHz plastic thru-hull depth and separate plastic thru-hull speed transducers
Interface      SeaTalk; SeaTalk-ng/NMEA 2000 capable
Other Functions      Temp; deep/shalllow/anchor alarms; repeater mode
Dimensions             5"W x 2.8"H x 1.5"D
Warranty                Two years, with one year extension after on-line registration

Package contents

i40 display
    Thru-hull depth transducer
    Thru-hull speed transducer
    Suncover
    SeaTalk cable
    Installation hardware
    Owner's manual

Shipping weight: 5.55 lb
