SEATRONX

12" Pilothouse Touch Screen Display

Manufacturer part #: PHT-12
UPC: 850036822110
Condition: New

$2,408.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

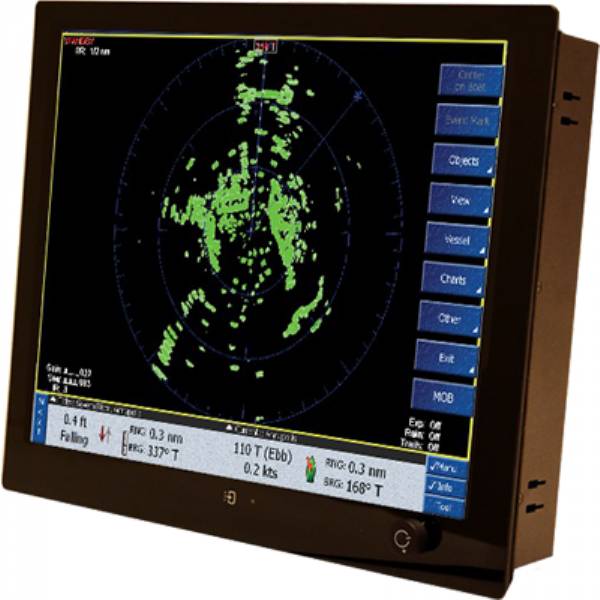

12" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

Mounting - Panel Mount , Vesa Mount
Dimensions - 11.88" x 10.13" x 2.28"
Cutout Dimensions - 11.16" x 9.43" x 2.40"
Projected Capacitive Touch
Optical Bonding
Optional Remote Control

Technical Specifications:

Diagonal (active area) Inch - 12.1"
Native Resolution (Pixels) - 1024x768
Contrast Ratio - 700:1
Brightness - 700
Viewing Angle (left, right) - 80, 80
Viewing Angle (up, down) - 80, 80
Backlight Dimming - 0 - max
Backlight Lifetime (Hrs) - 50,000
Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
Power Source - 9-34V + and -
Power Consumption (AMPS @ 24VDC) - 2.5
Inlet Plug DC Power - Screw Terminal
Sealing Front - IP68 with Potentiometer
Operating Temperature (°C) - -30 to 85
Storage Temperature (°C) - -30 to 80

Shipping weight: 13.2 lb
