SIMRAD
NSO evo3S MPU Only
- Manufacturer part #
- 000-15100-001
- UPC
- 9420064106578
- Condition
- New
$5,099.99
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details

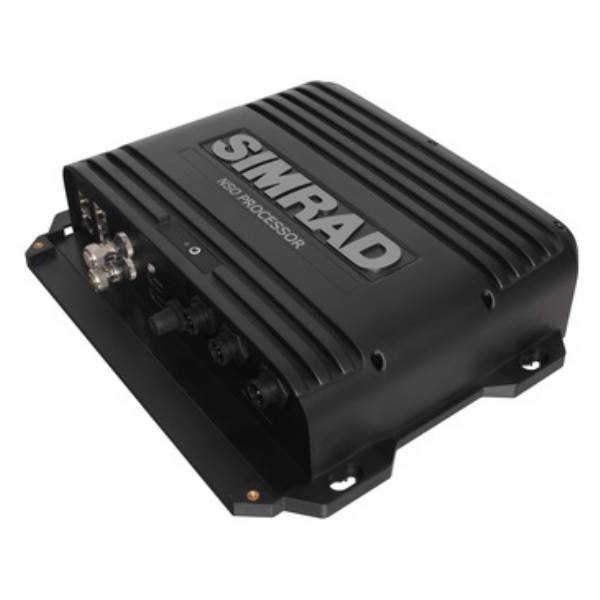

Simrad NSO evo3S MPU Only
Model: 000-15100-001- Large-Screen Navigation System
- Multi-TouchSensible (with compatible display)
- Dual Independent Video Output
- Full HD Video
- Performance Module compatibility
- Cartography Choice
- Smaller, lighter design
- Quad-Core Processing Power
- Independent HDMI output ports allow different setups on each display
- 2 x Quad core processors
- Dedicated processor per monitor gives superior speed and chart draw performance
- Control both NSO evo3S MPU monitors direct from your Ipad or Android Tablet.
- Multi zoom touch gestures
- Naviconics Depth Highlight range
- Naviconics shallow water highlight
- AIS Sarts
- Fusion Link Audio Device Support
- Grib Weather
- Flir Camera integration
- GS25 Antenna Configuration
| Mechanical / Environmental | |
| Casing | ABS Plastic |
| Operating Temp | -15 degC to +55 degC |
| water ingress | IPx2 |
| Weight | 1060g |
| dimensions (overall) | 281mm (W) x 232mm (H) x 65.5mm (D) |
| Electrical | |
| Operating voltage | 9 - 31.2 V DC |
| Power consumption | 45W (Max) |
| Low power standby mode | yes |
| Protection | reverse polarity and temporary over-voltage to 36V |
| Alarm output current | capable of driving 10A relay coil |
| Processor | iMX61 quad core |
| RAM | DDR3 1GB |
| Storage | 8GB Flash |
| Conformity | CE, C-Tick, HDMI |
| Interfaces | |
| ethernet | 3 ports total - 1 & 2 are PoE (RJ45 socket) |
| NMEA 2000 | 1 port on rear (Micro-C male) |
| Video input | 2 ports on rear (BNC female. NTCS or PAL format) |
| Video output | 1024x768 (XGA 4:3), 1280x720 (HD 16:9), |
| USB | mass storage, keyboard and mouse (Type A socket) |
| SD | 32GB (Full size SD card socket) |
| NMEA 0183 baud rate | 4800, 9600, 19200, & 38400 (via proprietary cable) |
| NMEA 0183 via RS232 | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| charting support | Navionics, CMAP, Insight, NV Charts on SD |
What's in the Box:
- NSO evo3S MPU
- Power Cable
- RJ45-Yellow Round Ethernet adapter cable RJ45M / 5PinF
- NSO evo2 NMEA0183/Touch Monitor serial cable 2 m (6.5 ft) Eight core cable
- N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000(R) cable
- N2K-PWR-RD - NMEA 2000(R) power cable. Includes power cable and 1 x T connector
- TR-120-KIT - Set of 1 male and 1 female NMEA 2000(R) terminators
- N2K-T-RD - Micro-C T-connector for connection of an additional network device x 2
- NSO evo2 Installation Kit
- Documentation
Shipping weight: 28.7 lb
