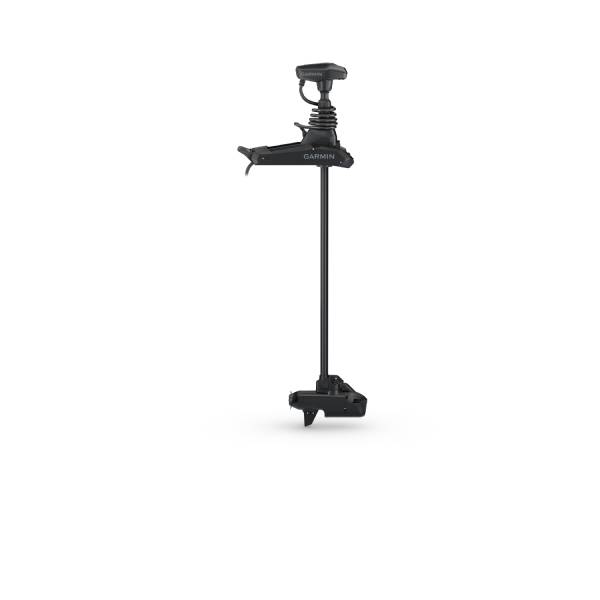

Force Kraken Trolling Motor Black 63in Shaft with GT56UHD-TR

General
COLOR Black
FOR USE IN freshwater, brackish water and saltwater
MOUNT STYLE pivot-style mount
MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc
VOLTAGE 24 V or 36 V
ELECTRIC STEERING - yes
BUILT-IN HEADING SENSOR - yes
BUILT-IN GPS yes (dual frequency GPS)
WARRANTY 3-year, limited lifetime on shaft
WATER RATING IPX7
MOUNTING LOCATION bow
WIRELESS REMOTE yes (included)
FOOT PEDAL COMPATIBLE - yes
BATTERY INDICATOR - yes
VARIABLE SPEED CONTROL yes (20 steps)
LIGHTED DIRECTION INDICATOR - yes
DECK STABILIZER yes (90" only)
QUATIX REMOTE CONTROL SUPPORTED - yes

Sonar Features & Specifications
LIVESCOPE CABLE INTEGRATION - yes (LiveScope transducer and Kraken Mounting Bracket purchases required)
FREQUENCIES SUPPORTED - Traditional: High-wide CHIRP (150-240 kHz), ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
TRANSMIT POWER Traditional: 350 W, ClearVü/SideVü: 500 W
MAXIMUM DEPTH CHIRP sonar: 800 ft freshwater, ClearVü: 400 ft; SideVü: 500 ft
DEPTH/SPEED/TEMPERATURE depth and temperature
NUMBER OF PINS 12-pin (orange connector)

Autopilot Features
ROUTE FOLLOWING - yes
ANCHOR LOCK - yes
ANCHOR LOCK JOG - yes
HEADING HOLD - yes
CRUISE CONTROL - yes
GESTURE FEATURES - yes (manual+, heading hold+, jog+)

Foot Pedal Features
DIMENSIONS 12" L x 9" W x 4 1/2" H
WIRELESS COMMUNICATION - yes
POWER INSTALLATION 12V/24V/36V wired or battery powered (2 AA)
AA BATTERY LIFE 1 full season
WATER RATING IPX7
ADJUSTABLE PEDAL RESISTANCE - yes

Remote Features
DISPLAY SIZE 1.2" (30.4 mm) diameter
DISPLAY RESOLUTION 240 x 240 pixels
DISPLAY TYPE color, sunlight-visible, transflective memory-in-pixel (MIP)
CHARTPLOTTER USER-PROGRAMMABLE KEYS - yes
AUTOPILOT FEATURE CONTROL - yes
WATER RATING IPX7
BATTERY LIFE typical use with backlight at low, 43 weeks
FLOATS - yes
