Striker Vivid 5cv 5in Ice Fishing Bundle NOT A CHART PLOTTER

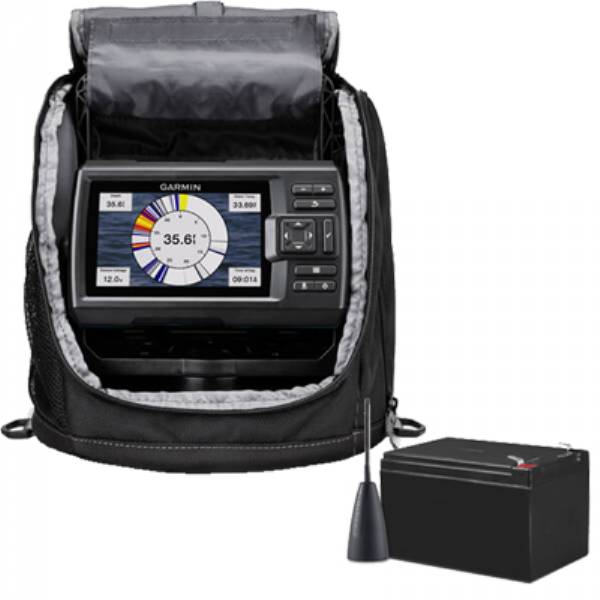

Garmin STRIKER™ Vivid 5cv Ice Fishing Bundle with GT8HW-IF Transducer and Lead Acid Battery
Model: 010-02551-04

• View all the action on an easy-to-use fishfinder with bright 5 in display.
• See clearly below the ice with the Garmin CHIRP traditional sonar.
• Got a favorite honey hole? Find it easily on the ice with GPS.
• Create your own maps of your favorite fishing spots using Quickdraw Contours.
• Take your gear with you across the ice with a rugged carrying case.

This ice fishing bundle includes the STRIKER Vivid 5cv fishfinder and everything you need for a great day on the ice.

The GT8HW-IF transducer with Garmin CHIRP traditional sonar offers adjustable beam angles and crystal-clear images with remarkable target separation.

See your jig or weighted bait, as well as the depth of fish swimming into the sonar beam. You can even watch your jig being lifted or dropped - and see whether fish are moving toward or away from it.

High-sensitivity GPS helps you find and mark your favorite hot spots - plus create routes and view your boat's speed for year-round use.

Nobody knows the waters you fish better than you. STRIKER Vivid 5cv can now store up to 2 million acres of maps with 1 ft contours.

An optional all-season kit adds the GT20-TM transducer, so you can use your STRIKER Vivid 5cv all year - with high-contrast color palettes that make it easier to see what's beneath the surface.

Take your bundle along with a rugged, portable carrying case that lets you easily transport it from hole to hole and season to season.

Specifications

General
Dimensions	7.4 in x 4.5 in x 2.1 in (18.8 x 11.6 x 5.4 cm)
Weight	1.0 lb (450 g)
Water rating	IPX7
Display type	WVGA color
Display size	2.6 in x 4.3 in (6.5 x 10.8 cm); 5.0 in diagonal (12.8 cm)
Display resolution	800 x 480 pixels
Mounting options	Flush, tilt/swivel
Input	Keyed
Maps and Memory
Waypoints/favorites/locations	5,000
Track points	50,000
Tracks	50
Routes	100
Optional map support	Garmin Quickdraw Contours
Sensors
GPS	Yes, built-in receiver
Supports WAAS	Yes
Electrical
Power input	12 to 20 Vdc
Typical current draw	0.40 A
Maximum current draw	1.5 A
Power consumption	4.8 W
Sonar
Displays sonar	Yes
Traditional sonar (dual frequency/beam)	Built-in
ClearVü	Built-in
Frequency	Traditional: 50/77/200 kHz CHIRP (mid and high); ClearVü: 260/455/800 kHz
Transmit power	500 W (RMS)
Bottom lock (shows return from the bottom up)	Yes
Water temperature log	Yes
Fishfinder Features
Split-screen zoom	Yes
Fish Symbol ID (helps identify fish targets)	Yes
Autogain technology (minimizes clutter; maximizes targets)	Yes
Adjustable depth line (measures depth of underwater objects)	Yes
Real time display of fish passing through transducer beam	Yes
Depth range shading	Yes
Networking and Connections
4-pin transducer ports	1
