Striker Vivid 7cv 7in Fishfinder GPS Track Plotter With GT20

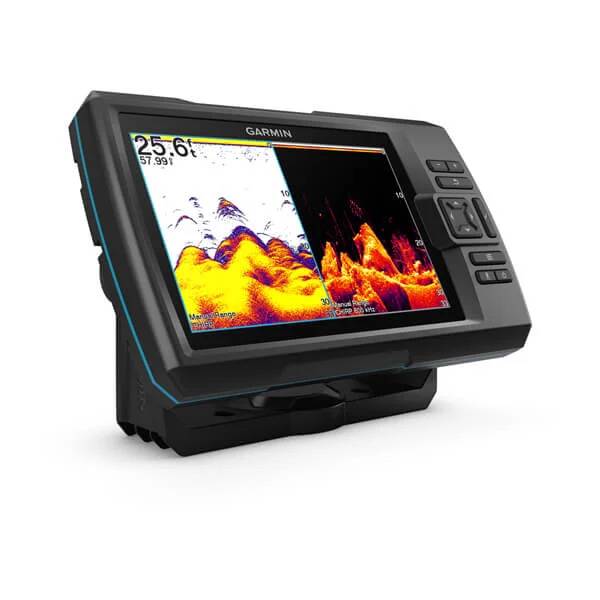

Garmin STRIKER™ Vivid 7cv Fishfinder with GT20-TM Transducer
Model: 010-02552-00

• The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
• What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.
• Never lose a hot spot again. Use waypoint marking to find your way back.
• What's under the water's surface looks pretty good as 1 ft contours, just saying.
• Wi-Fi® connection on land opens up a world of possibilities on the water.

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7 in fishfinder.

Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

Plan and create routes and view your boat's speed on your fishfinder using high-sensitivity GPS.

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7cv fishfinder, you can store up to 2 million acres of maps with 1 ft contours.

Connect to the ActiveCaptain® app to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

The STRIKER Vivid 7cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Requires the ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7cv fishfinder.

Specifications

General
Dimensions	9.3 in x 5.5 in x 2.3 in (23.5 x 14.0 x 5.8 cm)
Weight	1.7 lbs (770 g)
Water rating	IPX7
Display type	WVGA color
Display size	3.4 in x 6.1 in (8.6 x 15.4 cm); 7.0 in diagonal (17.8 cm)
Display resolution	800 x 480 pixels
Mounting options	Flush, tilt/swivel
Input	Keyed
Maps and Memory
Waypoints/favorites/locations	5,000
Track points	50,000
Tracks	50
Routes	100
Optional map support	Garmin Quickdraw Contours
Sensors
GPS	Yes, built-in receiver
Supports WAAS	Yes
Electrical
Power input	12 to 20 Vdc
Typical current draw	0.55 A
Maximum current draw	1.5 A
Power consumption	6.6 W
Sonar
Displays sonar	Yes
Traditional sonar (dual frequency/beam)	Built-in
ClearVü	Built-in
Frequency	Traditional: 50/77/200 kHz CHIRP (mid and high); ClearVü: 260/455/800 kHz
Transmit power	500 W (RMS)
Bottom lock (shows return from the bottom up)	Yes
Water temperature log	Yes
Fishfinder Features
Split-screen zoom	Yes
Fish Symbol ID (helps identify fish targets)	Yes
Autogain technology (minimizes clutter; maximizes targets)	Yes
Adjustable depth line (measures depth of underwater objects)	Yes
Real time display of fish passing through transducer beam	Yes
Water temperature sensor included	Yes
Depth range shading	Yes
Networking and Connections
4-pin transducer ports	1
Garmin Wi-Fi network	Yes (local connection)

What's in the Box:

• STRIKER Vivid 7cv fishfinder
• GT20-TM transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation
